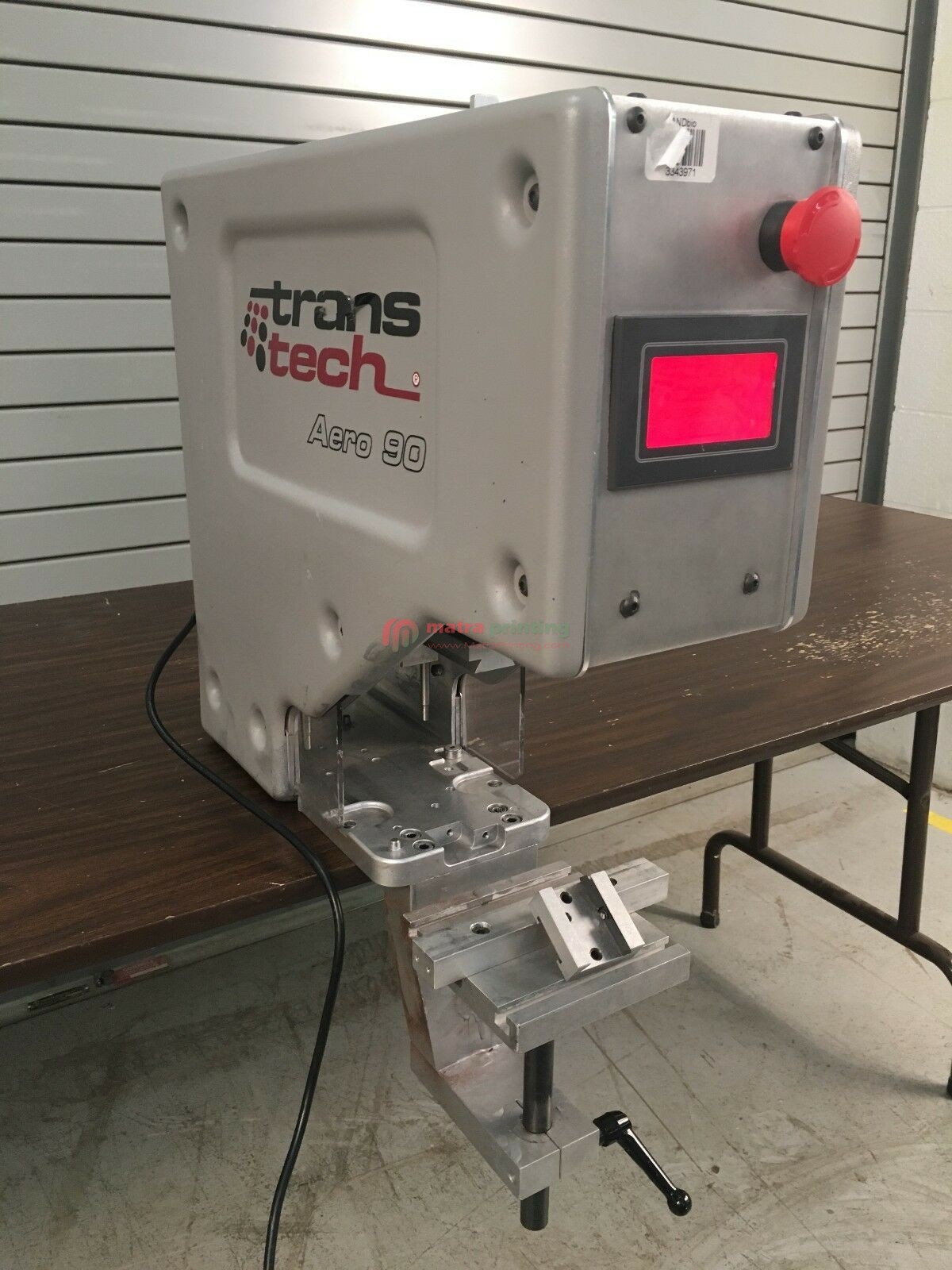

Trans Tech Aero 90 Pad Printer

Up for sale Trans Tech Aero 90 Pad Printer is in perfect working condition! This unit looks and works great! comes with 60 days warranty.

• Cycle Speed: Up to 1,250 cycles per hour
• Print Capabilities: Standard 1, 2, or 4 colors at a 5.5-inch pitch
• Plate Size: 3.94″ x 8.46″ (100 mm x 215 mm)
• Ink Cup Size: Accepts up to 90 mm cups
• Power Requirements: 110 V, 60 Hz, single phase (24V DC controls)
• Air Requirement: 80 PSI minimum
• Cycle Modes: Continuous or single cycle
• Hit Selection: Programmable 1 to 5 hit selection
• Timing Controls: Programmable pad delays, cycle delays, and doctor-ink mix modes
• Diagnostic Data: On-board batch counting, I/O status diagnostics, and production data tracking
• SpaceFrame System: Uses a floating carbide ring and disposable ExpressLiners, cutting labor time and cleaning supplies by up to 27%.
• Versatile Plate Compatibility: Supports both cost-effective temporary plates (for short runs) and thick steel plates (for long-run production).
• Pad Compression: Engineered for high durometer pads to reduce pinholes on textured surfaces, ensuring superior print quality
