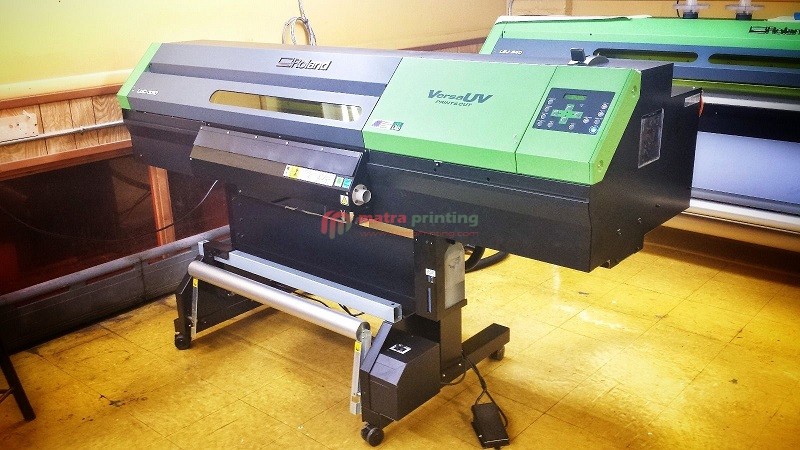

Roland LEC 330 UV Printer and Cutter

Flash Sale Roland LEC 330 UV Printer and Cutter is in perfect working condition! fully operational and functions as intended.

Roland LEC 330 UV Printer and Cutter Specifications:

• MODEL: LEC-330
• Printing method / Cutting method: Piezoelectric inkjet / Grit roller feed
• Acceptable media: Width 7.2 to 30 in. (182 to 762 mm)
• Thickness: Printing: Maximum 39 mil (1.0 mm) with liner Cutting : Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner
• Roll outer diameter: Maximum 7.1 in (180 mm)
• Roll weight: Maximum 44 lb. (20 kg)
• Core diameter: 2 in (50.8mm) or 3 in (76.2mm)
• Printing/cutting width: Maximum 29 in (736 mm)
• Ink cartridges Type: Roland ECO-UV INK
• Capacity: 220 ml (± 5 ml)
• Colors: 5 colors + Clear coat (Cyan, Magenta, Yellow, Black, White and Clear coat)
• Configuration: CMYK+Gloss+White, CMYK+White+White or CMYK+Gloss+Gloss
• Ink curing unit Built-in ultraviolet-light emitter (UV-LED Lamp)
• Printing resolutions: 360×720 dpi, 720×720 dpi, 720×1440 dpi, 1440×1440 dpi
• Acceptable blade tool: Roland CAMM-1 series cutter blade.
• Cutting speed: 0.4 (10 mm/s) to 23.6 in/s (600 mm/s) (0.4 to 11.8 in/s in media feed direction)
• Blade force: 30 to 300gf
• Blade offset compensation: 0 to 0.0591 in (0.000 to 1.500 mm)
• Software resolution (when cutting): 0.000984 in/step (0.025 mm/step)
• Distance accuracy (when printing): Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3mm), whichever is greater.
• Distance accuracy(When cutting): Error of less than ± 0.4% of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater. When distance correction ([CUTTING MENU] -[CALIBRATION]) has been preformed: error of less than ± 0.2 % of distance traveled, or ± 0.004 in (0.1mm), whichever is greater.
• Repetition accuracy (When cutting): ± 0.004 in (0.1mm) or less
• Alignment accuracy for printing and cutting: ± 0.020 in (0.5mm) or less
• Alignment accuracy for printing and cutting when reloading media Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater
• Media take-up system Roll outer diameter: Maximum 7.1 in (180 mm)
• Roll weight: Maximum 44 lb (20 kg)
• Interface: Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
• Power-saving function: Automatic sleep feature
• Power supply Voltage and frequency: AC 100 to 240 V ± 10%, 50/60 Hz
• Required power capacity: Maximum 4.2 A
• Power consumption During operation: Maximum 370W
• Sleep mode: Approx. 15.3W
• Acoustic noise level During operation: 64dB (A) or less
• During standby: 40dB (A) or less
• Dimensions (with stand): [6]: 86.6 [W] x 32.3 [D] x 49.6 [H] in (2200[W] x 820 [D] x 1260 [H] mm)
• Weight (with stand): 390.2 lb. (177 kg)

Environment

• Power on: Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended), Humidity: 35 to 80% (no condensation)
• Power off: Temperature: 41° to 104°F (5° to 40°C), Humidity: 20 to 80% (no condensation)

Included items

• Stand, power cord, blade (ZEC-U5022), blade holder (XD-CH2), media clamps, replacement blade for sheet cutter, User’s manual, etc.
