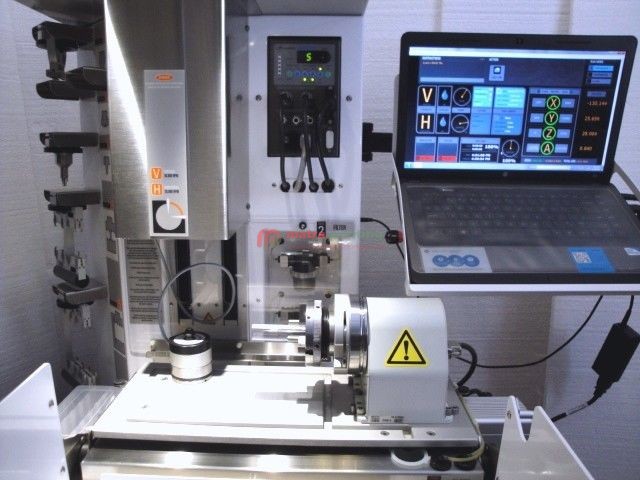

REVO 540C GEMVISION CNC 3D MILLING JEWELRY MACHINE

Up for sale REVO 540C GEMVISION CNC 3D MILLING JEWELRY MACHINE

The Gemvision Revo 540C is a dedicated 4-axis desktop CNC milling machine designed for the jewelry industry. It specializes in high-precision wax carving and rapid prototyping directly from CAD designs (such as Matrix), utilizing a high-speed spindle to carve intricate details for rings and pendants.

• Control Axis4-Axis (X, Y, Z, and A-rotational axis)
• Travels (X / Y / Z)175 mm × 100 mm × 175 mm (7″ × 4″ × 7″)
• SpindleHigh-speed, variable 1,000 – 25,000 RPM, 105W (0.14 HP)
• Supported ToolsUses standard \(1\diagup8\text{“}\) shank cutters (including 10° angled and flat end mills)
• Machine Dimensions114 cm W × 64 cm D × 81 cm H (45″ × 25″ × 32″)
• Weight≈ 82 kg (180 lbs) machine only
• Power Requirements5 Amps
• Fixturing System: Includes patented autocentering holders and a 3-jaw chuck designed for both multi-sided ring milling and flat workpiece carvings.
• Software Integration: Seamlessly interfaces with Gemvision’s CAD software to automatically generate toolpaths and support structures.
• Coolant System: Uses wet-milling with a specific coolant-to-distilled water ratio (typically 20:1) to maintain the temperature of wax, prevent melting, and ensure debris-free cutting.
