Panoscan Pointgun Portable Handheld 3D Scanner

Panoscan Pointgun Portable Handheld 3D Scanner

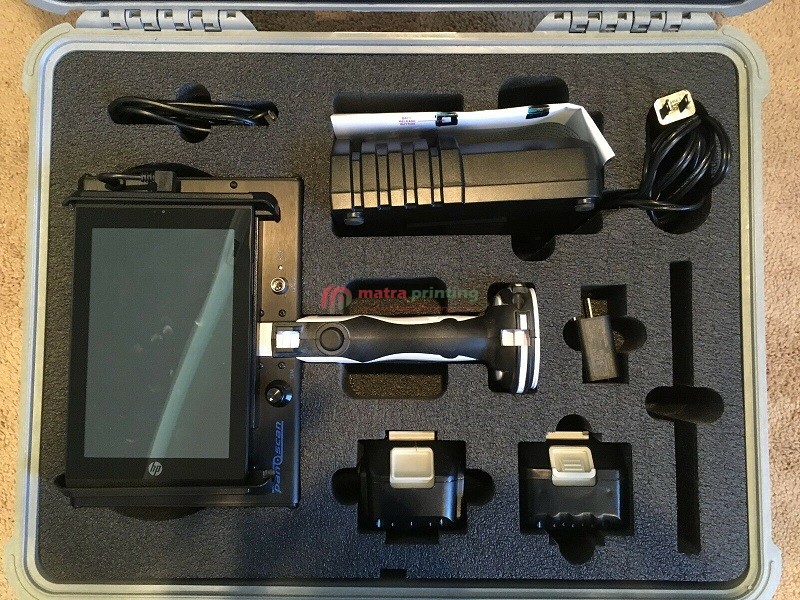

INCLUDED:
1 Hard case
1 Pointgun 3D Scanner
1 Tablet
2 Batteries
1 Battery Charger
1 AC adapter for tablet
1 Instruction Manual

Pointgun Information:
Highly Mobile. No tripod to set up. No wires.
All processing on tablet. No laptop needed.
Realtime data capture and review.
Automatic re localization and place recognition.
Realtime marker-less camera tracking.
Realtime occlusion maps.
Instant colored 3D point cloud creation.
Cloud-optimized 3D scan compression.
Onboard LED Lighting for night scanning.
Scans continuously for over 2 hours on a charge.
Instant swap of Android tablet for added storage & battery.
Instant swap of LED battery for added run time.
Exports popular formats. Works with most CAD software.
Accurate and fast. No scale calibration needed.
Calibrates to Total Station Control Targets if desired.

Imager: Near infra-red structured light + RGB color camera.

Sensor Range: 2 to 12 feet.

Capture Rate: Up to 2 million points per second.

Max Number of points per session: Approx 20 million.

Horizontal FOV: 57.5 degrees.

Operating Temp: Approx. 0-51C. (0-125F)

Humidity Range: 0 – 99% non-condensing.

Point Density: = 1.7mm at 1 meter distance.

= 3.4mm at 2 meter distance.

Tablet: 8” HD IPS LCD. Android. (Nvidia K1 Processor.)

Storage: 16gb internal + optional SD card.

Data Transfer: USB 2/3, Wifi.

Tablet Battery Life: Over 3.5 hours continuous scanning.

Output Format: Compressed .DP (Lossless)

Export Formats: .DP, PTX, PTS, PTG and PLY. (X,Y,Z,I,R,G,B)

Survey Control Input Format: CSV, comma delimited text file.

LED Light: 160 element LED panel with dimmer.

Battery: Makita LXT BL1830 (Operates scanner + LED)

Run Time: Over 4 hours continuous. (Instant Swap)

Recharge Time: 25 min.

Weight: 5lbs. (With Battery)

Overall Dimensions: 14” by 9” by 4” (With Battery)

Known Limitations: Cannot scan in direct sunlight.
