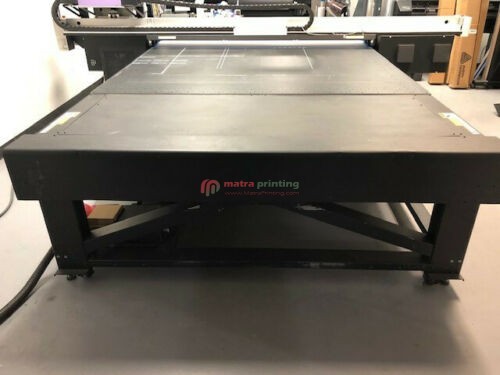

Mimaki JFX500 2131 extra wide format flatbed UV printer

Mimaki JFX500-2131 extra-wide format flatbed UV printer

Mimaki JFX500-2131 extra-wide format flatbed UV printer combines high quality output with easy operation for printing to a variety of rigid substrates. This production model can print on a single rigid sheet up to 82.7 W x 122 L x 2 T, or can be used to print on multiple, smaller rigid pieces in one pass. White and clear inks are available to produce a diverse range of prints for both indoor and outdoor use. It is ideally suited for applications such as backlit displays, signs and posters, interior décor, glass and metal decorative panels and more. The UV-LED lamps offer reduced energy consumption and a longer lamp lifetime.

The Mimaki JFX500-2131 Go Beyond Conventional
Fast printing speeds up to 645 SqFt (60 SqM) per hour
Print the equivalent of 20 4 x 8 boards per hour
Oversized table can fit one large board or a variety of pre-cut pieces
Table size 82.7 W x 122 L (2100 x 3100 mm)
Objects up to 2.0 thick (50 mm)
Layout pins ensure proper media alignment
High quality print resolution of up to 1,200 dpi
Variable dot printing and Mimaki Advanced Pass system deliver smooth gradients
Zoned vacuum table holds media flat
UV inks supplied in high-capacity 1 liter bottles
White, Clear, and Primer available
Choose LUS-150 or LUS-200 original UV-LED inks to suit the application
LH-100 inks offer high scratch and chemical resistance
Nozzle Recovery System
Low-energy UV-LED lamps last five years or more

Highlights of the Mimaki JFX500-2131
Extra-Large Table

The oversized table can print an entire 10-foot by nearly 7-foot wide piece, or print multiple smaller boards using the four selectable vacuum zones. It can also print to pre-cut, irregularly-shaped pieces.

Layout pins
Standard layout pins and scale ensure board alignment, which is particularly useful when printing full bleeds.

Mimaki s UV-LED system uses less energy than other UV types, has a longer life and can print into media that could be damaged by higher-heat systems.

What you can do with the Mimaki JFX500-2131
Signs and posters
Point-of-purchase displays
Exhibition graphics
Backlit panels
Interior decor
Packaging prototypes
Specialty and industrial applications
Acrylics
Polycarbonates
PVC
Glass
Aluminium
Metal
Polyesters
Foam board
Styrene
Wood
Stone
and more
