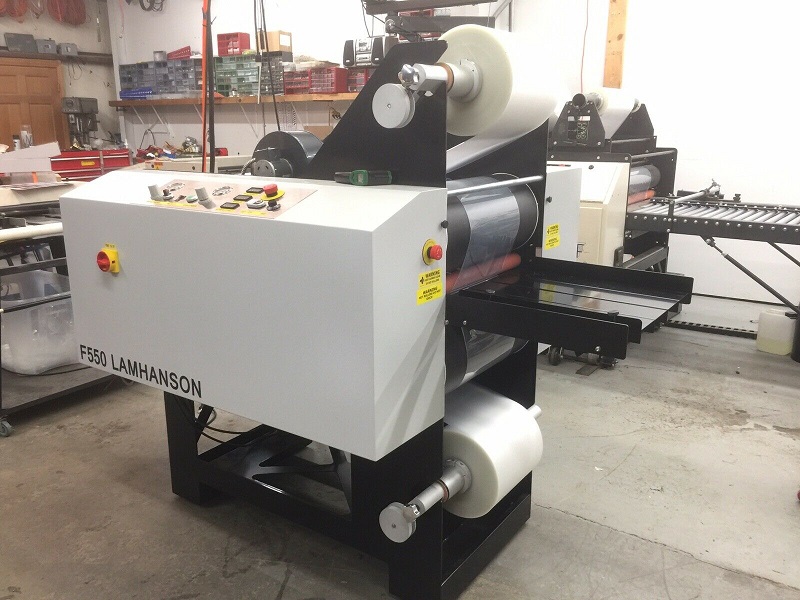

Lamhanson 20″ F550 High Speed Laminator for sale includes hand feed table
Glassy smooth lamination at high speed.
Scratching cannot be avoided when you try to pull plastic across a static heat shoe at higher speeds.
The Lamhanson rolling drum heaters solves this problem. With the Lamhanson there is no friction when the laminate enters, is heated and pressed on the sheet. Can you cut your 40″ Press Sheet in half and run 20 x 26? If so, consider the 20″ Lamhanson.
F550 specs:
Independent heating controls on the two main heated rollers
Heated nip rollers for faster start and less waste.
Maintenance free sealed bearings with 3 phase motor gear/box
Quick roll changing with front loading film mandrels
Film alignment both mandrels, can be adjusted on the move with tension control
4 cooling fans a curtain air design
Two full range slitter’s with micro adjustments, uses standard carpet knife type blades
Variable pressure controls of nip and pull rollers
Air pressure needed: 100 psi and 1 cfm
Electrical requirements: 3 phase 240v 50 amp service
Max Film width: 20”
Max Film roll diameter: 17.72”
Machine o/w winder: 48 x 48 x 48/62(top of holders)
Heat roller diameter: 10″
Film contact heat roller: 16″
Mandrel size: 3”
Max Speeds: FPM
3 mil laminate: 98
5 mil laminate: 65
10 mil laminate: 30
