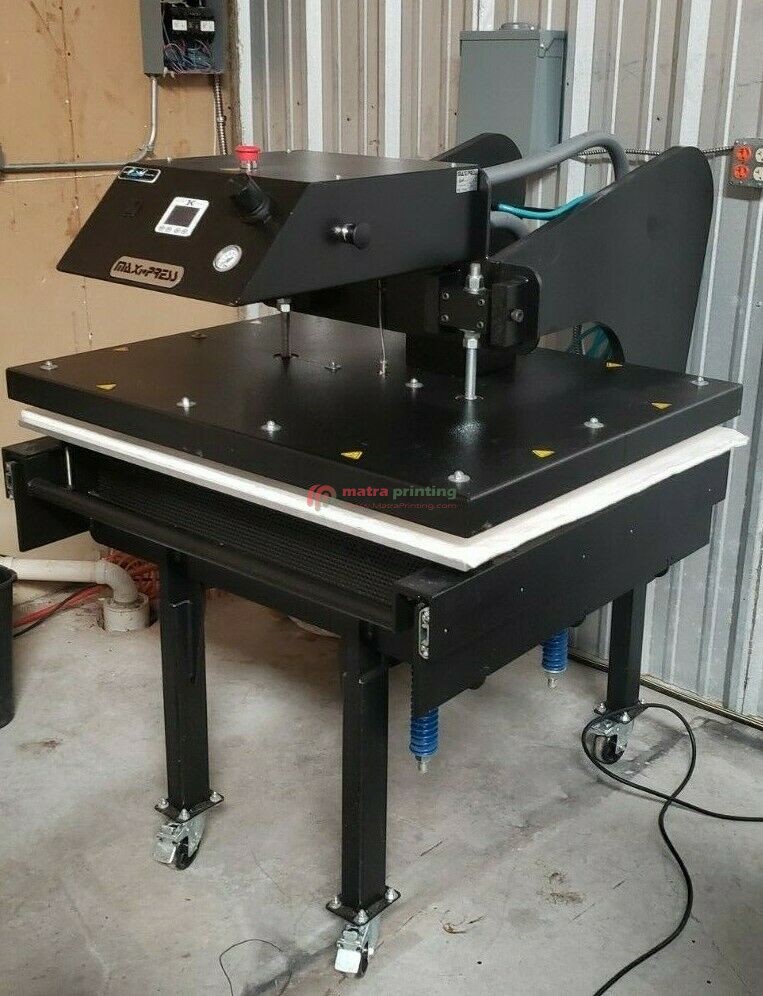

Geo Knight Maxi Press Air – Wide Format 32″ x 42″ Air Operated Heat Wide Format

Up for sale Geo Knight Maxi Press Air – Wide Format 32″ x 42″ Air Operated Heat Wide Format

AIR STANDARD FEATURES:
• Heavy steel frame welded steel structures
• Wide open C-frame design allows for left-to-right draping
• Ultra thick heater block assembly
• Front loading easy table slide assembly
• Locking casters for fast machine placement
• Self leveling pneumatic lift system
• 10 ton, 20,000 lbs max applied force
• Fully adjustable pressure regulator & pressure gauge indicator
• Solid machined-fl at lower loading table
• 1/2” thick high-temp nomex padding
• Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8” line

Electrical:
• Digital Micro-Processor based temperature control
• LCD Digital timer control & Solid state heater relay control
• Supercoil Microwinding heating elements
• Thermocouple sensor
• Hands-free automatic timer activation
• Thermal runaway alarm circuit
• Easy access control panel
• Internal control and main fusing discconect box
• 32×42: 208V-240V, 9000W, 1PH, 43A, 50A breaker recommended

Mechanical:
• Heavy steel frame welded steel structures
• Wide open C-frame design allows for left-to-right draping
• Ultra thick heater block assembly
• Front loading easy table slide assembly
• Locking casters for fast machine placement

Pressure:
• Self leveling pneumatic lift system
• 10 ton, 20,000 lbs max applied force
• Fully adjustable pressure regulator & pressure gauge indicator
• Solid machined-fl at lower loading table
• 1/2” thick high-temp nomex padding
• Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8” line
