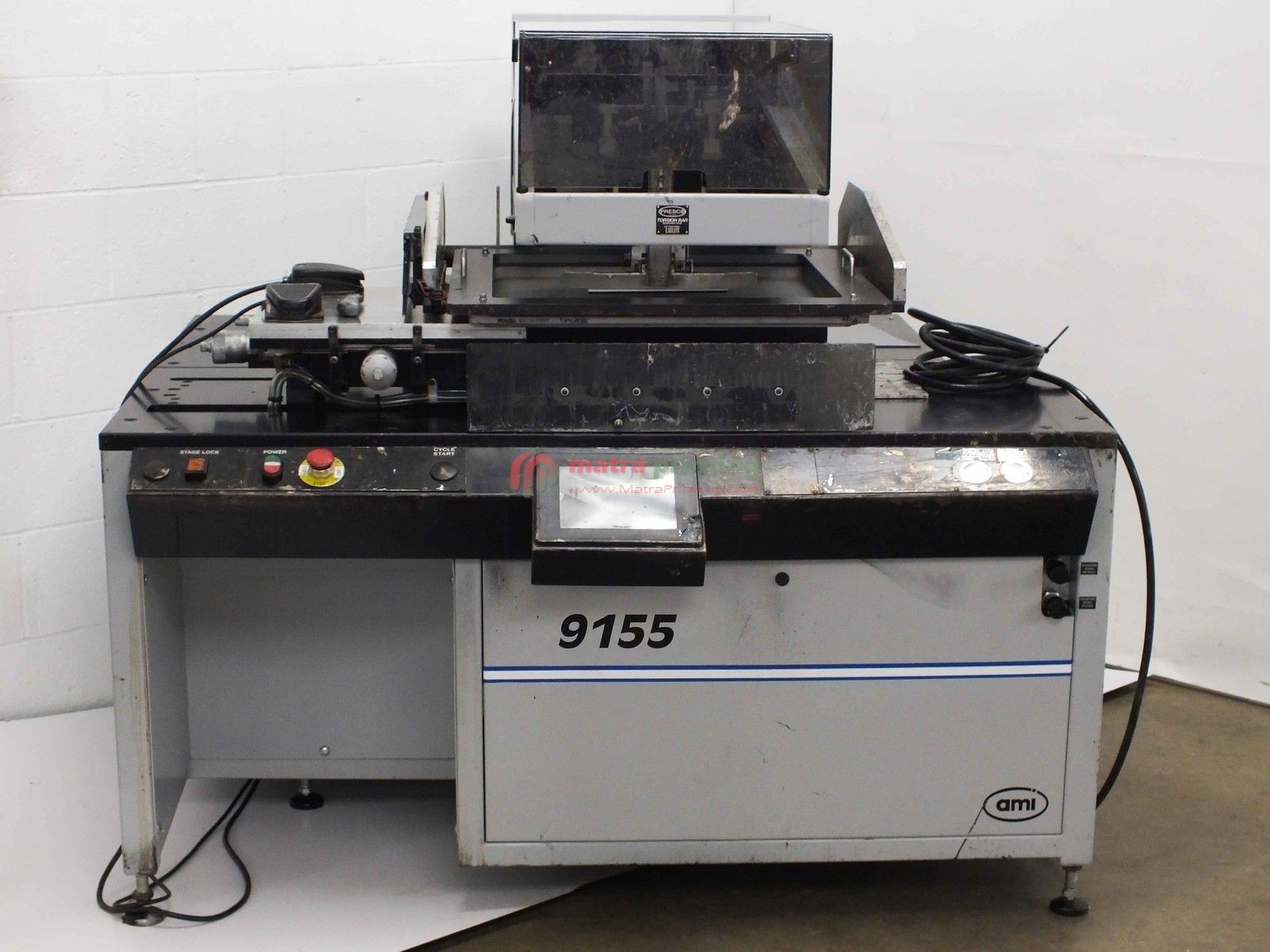

Flash Sale Used AMI MSP-9155 Presco Screen Printer is in perfect working condition! fully operational and functions as intended.Maple Systems Silver Series HMI530T-006 8″ LCD touchscreen will power on with a 24VDC source.
- Machine Type: Semi-Automatic Screen Printer
- Screen Size: Accommodates up to 20″ × 20″ ID frames
- Substrate Alignment: Manual XYZθ (Theta) precision stage
- Theta (T) Axis: True rotation about the center of the stage
- Squeegee Drive: Aqueous / Linear drive system (ensures vibration-free printing)
- Control System: Programmable Logic Controller (PLC) with an LCD touch-screen interface
- Print Modes: Stand-alone or in-line capable
- Hold-Down Method: Vacuum hold-down (standard)
- Machine Dimensions: Approximately 58″ × 58″ × 60″ (1.48 m × 1.48 m × 1.53 m)
- Machine Weight: Approx. 1150 lbs (525 kg)
The controller cabinet contains the following:
- Sola Power Supply SDN 2.5-24-100P
- Direct Logic Koyo D2-09BDC1-1
- Direct Logic DL250-1 CPU, D2-250-1 CPU
- Direct Logic D2-32ND3
- Direct Logic H2-CITRO
- Direct Logic D2-08TD1
- Direct Logic D2-16DT2-2
- Potter & Brumfield KUP-14D15-24 Relay
- Bussmann OPM-NG-SC3
