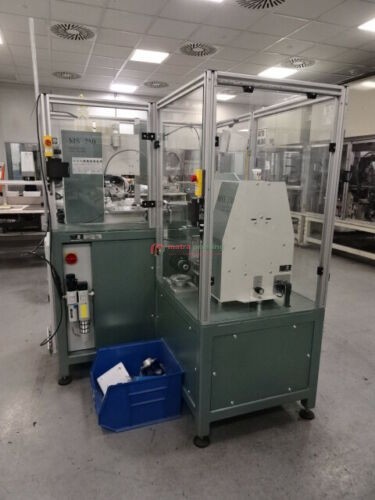

2016 MicroPrint Model 800-AN Dual Head Pad Printer

Up for sale 2016 MicroPrint Model 800-AN Dual Head Pad Printer

The microPrint Model 800-AN Dual Head Pad Printer is a Swiss-engineered, heavy-duty, two-color system built for high-precision, industrial applications. Featuring a dual-head pneumatic setup, linear motor controls, and advanced part-shuttling, it delivers exceptional registration accuracy and output in a robust footprint

• Number of Colors/Heads: 2 colors (Dual-head setup)
• Drive System: Electro-pneumatic drive with linear motor control
• Max. Mechanical Speed: Up to 1,200 to 1,500 cycles per hour (depending on application and ink setup)
• Maximum Print Diameter / Area: Up to 85 mm – 90 mm depending on cup size
• Ink Cup Size: Accommodates ink cup sizes ranging from 90 mm up to 140 mm (Standard is typically 90 mm or 130 mm)
• Maximum Plate (Cliché) Size: 100 × 200 mm to 130 × 250 mm (dependent on ink cup line)
• Pad Stroke (Vertical): Up to 100 mm – 140 mm
• Power Requirements: 110V/220V, 50-60 Hz (single phase)
• Air Pressure: 5 to 6 bar (87 psi)
• Machine Weight: Approximately 265 kg – 300 kg (machine without stand)
